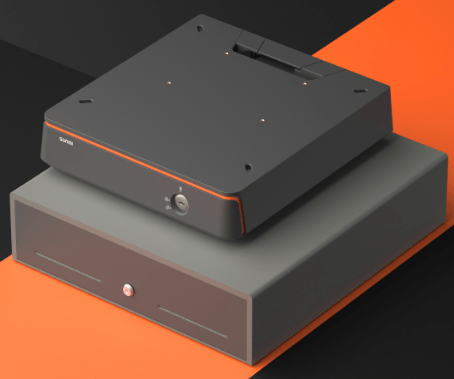

Mini Cash Drawer Tech Specs
Cash Drawer
Plastic and metallic
Trays
Four normal bill & one big bill trays Three coin trays

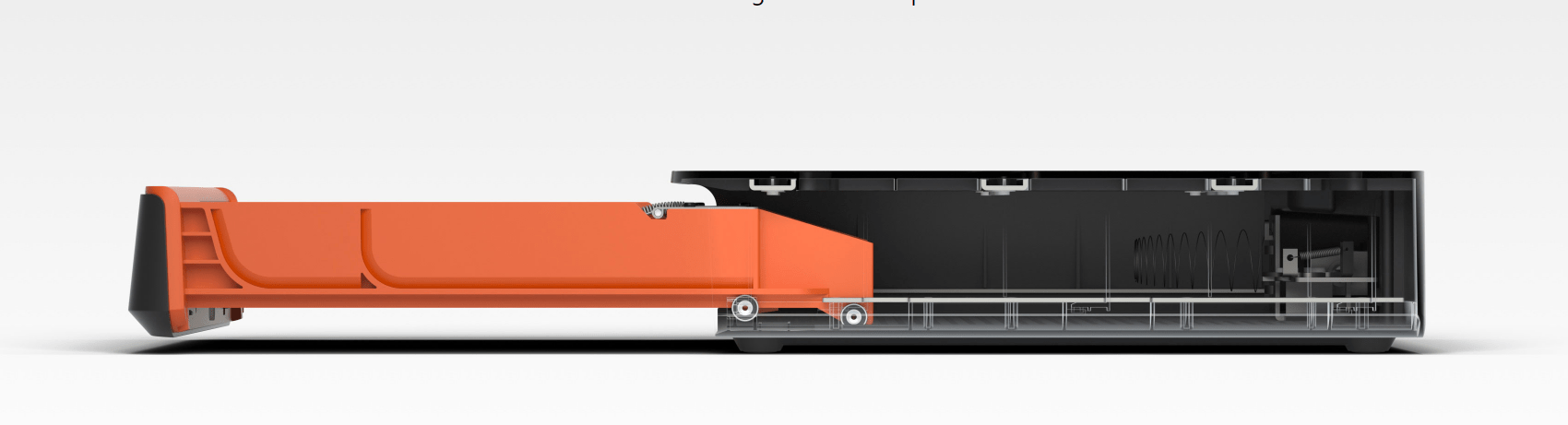

Metallic Bearing
Up to 10kg bearable
Cable
RJ12, 6P4C, 0.8m
Lock
Three positions lock (electronic, manual and deadlock)
Bill Clip
Plastic and metallic
Cable Storage Compartment
Rear-set compartment with cover
Drive Voltage
DC9V~24V, 1A
Drive Pulse Width
100ms-300ms
Drive Protections
3A overcurrent protection triggered by electromagnetic valve shrot circuit Input pulse overvoltage protection Input pulse timeout protection Self-adaptive to 9V-28V input voltage Contact ESD 8KV/air ESD 15KV Termal shutdown
Service Life
≥1000000 operations
Noise
<50dB
Status Feedback
Status detection switch
Size
W317mm x L332mm x H72mm
Total Weight
2.3Kg
Environment
Working temperature and humidity: 0℃ ~ 45℃, 30% ~ 85% Storage temperature and humidity: -20℃ ~ 60℃, 10% ~ 90%
