D3 Pro Single Screen

D3 Pro Single Screen

General Configuration
Product Model
F3510
OS
SUNMI OS
(based on Android 13)
Wi-Fi
2.4GHz & 5GHz
IEEE 802.11 a/b/g/n/ac
supported
Button
1*Power button (Lock
screen; Fingerprint
recognition optional)
Network
LAN 1000M
Speaker
1*3W
Processor
Qualcomm hexa-core,
up to 2.4GHz
Memory
4GB RAM+64GB ROM
Power Adapter
Input: AC 100~240V/1.5A
Output: DC 24V/1.5A/36W
Bluetooth
BT 5.0
BLE supported
Display

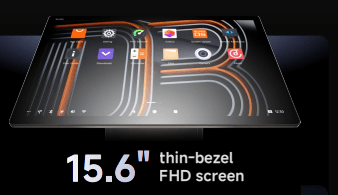

15.6″ FHD 1920*1080,
10-point capacitive touch
screen
External Memory
1*MicroSD (TF card)
Up to 1TB supported
Ports
1*USB typeA 3.0 port
2*USB typeA 2.0 port
1*RJ11 serial port
1*RJ12 cash drawer port
1*RJ45 LAN port
1*audio jack
1*power port
1*USB typeC 2.0 port
1*MicroUSB debug port
Weight
D3 PRO: 4.5kg
10.1″ separate monitor:
0.88kg
Environment
Operating temperature:
0°C~40°C
Storage temperature:
-20°C～60°C
Indicator Light
Blue (Power)
Accessories
10.1″ separate monitor,
HD 1280*800
(NFC Tap on Glass optional)
Dimensions (L*W*H)
380mm*195mm*310mm
